KPAC1411-2

LIST PRICE $4,125.00 - 12in Collar Optional

13,700 BTUH Economy KPACII Portable

General Details


The Model KPAC1411-2 (nominal 1.1-ton or 13,700 BTU) is the smallest unit in size and capacity in The KPAC II Series, KwiKool’s Single Duct Line of portables. The KPAC1411-2 has an extremely small foot print that is ideal for spot cooling people or equipment in a high ambient environment. The KPAC II Series offers a quick cooling solution with its “plug and play” technology that tops the competition with its small size, strong air flow, and easy installation. The KPAC II Series achieves a 20 degree F. temperature differential across its coil. This means that 95 degree F. input air will produce 75 degree F. output air. For spot cooling applications at a work station the unit will effectively cool a person or equipment within 5 to 7 feet of the unit. The KPAC II Series out performs and out lasts other portables, all at a price that is comparable to other products.

The KPAC1411-2 runs on a standard 115-volt/15-amp circuit with automatic restart after a power failure. The unit comes with a 3.5-gallon self-contained condensate tank with float activated unit cut off, that is manually emptied. Installation takes less than ten minutes for easy set up, using the single duct ceiling kit.

And, KwiKool products are proudly MADE IN AMERICA.

.made-in-usa-badge

Cooling Capacity (BTUH)
13,700 btuh (1.1-Ton)
Power Supply
115V- 1Ø   15 Amp Circuit
Dimensions (WxDxH)
16.325x26x37.25
Specifications
COOLING CAPACITY
BTU/hr @ 95F at 60% RH13,700 (1.1-Ton)
COMPRESSOR DATA
Compressor TypeHermetic Rotary
Operating Temperatures70-105 F 50%RH
Refrigerant410A
FAN DATA
Evaporator
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)460/1 Speed
Supply Air Device2 - 5" Dia. x 16" Air Chute
Supply Air Duct max. length25'
Condenser
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)700
Condenser Duct Specs (optional)1 - 12" Dia. x 8' Length
Condenser Duct Max. Length 25'
ELECTRICAL DATA
Power Supply (Volts) 115/Single Phase
Current Consumption (Amps) 11.5
Power Consumption (kW) 1.19
Maximum Circuit Breaker (Amps) 20
Recommended Breaker Size15 or 20
Minimum Circuit Ampacity(Amps) 17.085
Min./Max. Voltage 105-125
Power Cord Gauge/Length 14/6'
Plug Configuration NEMA 5-15
DIMENSIONAL DATA
Width x Depth x Height (Inches) 16.325" x 26" x 37.25"
Weight (Lbs.) 157
Shipping Weight (Lbs.) 207
Ceiling Kit Weight (Lbs.) 22
Shipping Weight w/ Ceiling Kit 229
SAFETY DEVICE DATA
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze Protection Freeze Stat
High Pressure Switch Manual
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Type Microprocessor/Digital
Condensate Pump Overflow Optional
Condensate Tank Overflow Yes

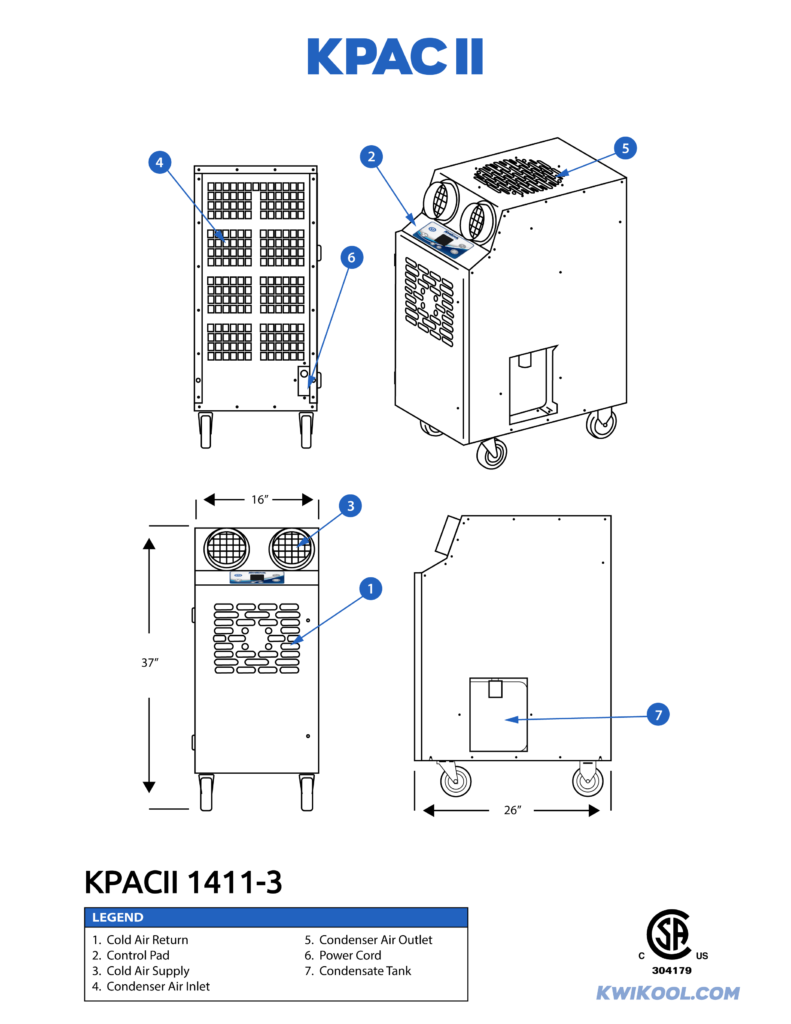

Detail Drawings
Features
  • MADE IN USA
  • 13,700 BTU/H – 1.15 Ton capacity air cooled
  • Compact yet Powerful
  • Runs on 115V 15 amp circuit
  • Wide Operating range of 70ºF-110ºF
  • ETL and CETL listed to UL and CSA standards
  • Single duct system for easy installation.
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap.
  • 3.5 gallon self-contained condensate reservoir tank for easy removal and emptying.
  • Condensate overflow protection with audible alarm
  • Capillary tube construction for simplicity.
  • Heavy duty compressor with automatic restart and short cycle protection.
  • Motors and compressors have overload protection.
  • High-pressure safety with manual reset.
  • Automatic freeze protection using microprocessor freeze stat.
  • Heavy-duty locking casters.
  • Rifle tube coils for efficient heat transfer.
  • Fully insulated, heavy duty galvanized steel cabinet with Kwikool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation.
  • Filter dryer for Moisture protection
  • Easy access Service Door
  • Shraeder service ports.
