KBP1000

General Details
Advanced Touch Screen Controls & Alarms
KwiKool’s BioAir+™ is available in 3 models: 600 CFM, 1000 CFM, & 1800 CFM. All models use the air cleaning power of High-Efficiency Particulate Air (HEPA) 99.9% filters, which capture all particles greater than .3 microns. All models can be used with a HEPA-filtered air cleaner or as a filtered negative air machine. When used to create negative pressure, the unit removes potentially contaminated air from the space and pulls in fresh air from outside. Also, the BioAir + models can simultaneously clean and purify while creating negative pressure.

Unmatched Innovation
Introducing BioAir+™, the latest addition to the exclusive KwiKool product line. With more than 30 units developed over two decades, KwiKool is leading the industry in portable cooling systems with more innovations in spot cooling than any other brand. Today, KwiKool has achieved what others have been unable to: provide a uniquely crafted solution that includes everything medical administrators, clean room facilities, and laboratories have been searching for in an advanced air scrubbing system.

Air Quality Systems You Can Trust
As an added layer of protection, Internal UVC lights have been fitted inside each air chamber, irradiating the cold air supply, the evaporator coil, and the internal surfaces of the evaporator chamber. With a UVC light in place, microorganisms and pathogens are on the run.

The inside of the BioAir+™ chamber has KwiKool’s exclusive smooth,  non-porous, and UV-resistant surface evaporator insulation. This smooth surface makes attaching molds or other microbes to the insulation more difficult. It also repels moisture which aids in preventing microbe growth.

This state-of-the-art BioAir+™ unit provides maximum protection from 99.9% of contaminants found in inside and outside air. Our patent-pending design and dual condenser ducting maintain balanced air pressure within the room, keeping it cool for as long as you need it.

Medical Grade Portable Purification
The BioAir+™ Series is quick and easy with its “plug and play” technology and has a patent-pending. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands of ordinary spot coolers), the BioKool Series is in a class by itself and will give you a clean, air-cooled space that you need.

Cooling Capacity (BTUH) :
1000 CFM
Power Supply
120V/15 Amp Circuit
Dimensions (WxDxH)
22x17x38
Specifications
PURIFICATION
ULPA/HEPA Filter99.999% @ > .12 Microns
UVC Light Wave LengthUVC 30 Watts / Max 85 Watts x 2
FAN DATA
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)
Zero Static
1000/875/750 - 3 Speed
Quad Directional
Top Discharge
Stainless Flange
10 In. / Optional 12 In.
Optional CK-12S-SS
Ceiling Kit
12" Dia.
ELECTRICAL
Power Supply (Volts) 115V / Single Phase
Current Consumption5.94 Amps
Power Consumption.68 kW
Maximum Circuit Breaker20 Amps
Recommended Breaker15
Minimum Circuit Ampacity 8.17 Amps
Min./Max. Voltage 105-125
Power Cord14 AWG / 6' Length
Plug Configuration NEMA 5-15

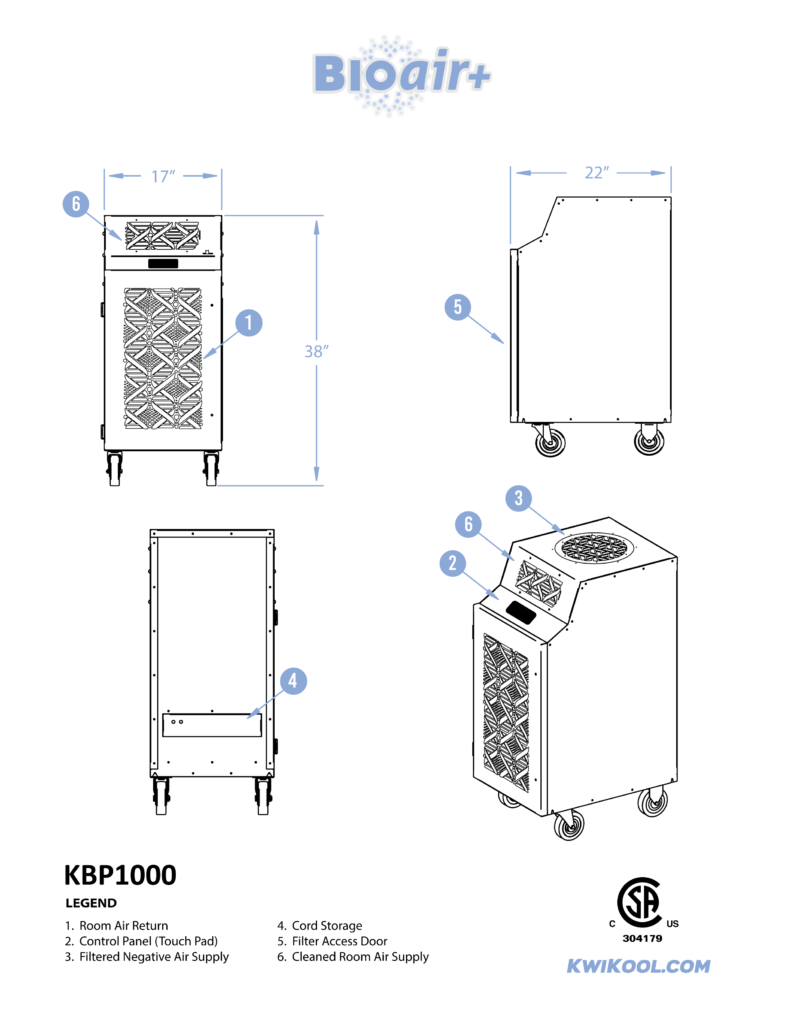

DIMENSIONS
Width x Length x Height 16.5" x 22.25" x 38"
Weight90 Lbs
Shipping Weight125 Lbs
Ceiling Kit - CK - 12SS12 Lbs
TTL Shipping Weight137 Lbs
SAFETY
Compressor OverloadAutomatic Internal
Automatic RestartYes
Features
  • Combines Hospital grade HEPA-filtration with UVC light technology to control air quality
  • ULPA 4 inch thick Filter – a high-efficiency UPLA filter which filters 99.97% of particulates greater than .3 microns in size
  • All models can be used as either a HEPA-filtered air cleaner or as a filtered negative air machine, or both simultaneously.
  • Dual UVC lights housed inside the unit, further clean the air after passing through the HEPA filter
  • Internal UVC lights attack molds, bacteria, and pathogens by irradiating the internal chamber with reflective insulation generating light angles
  • Powerful yet Compact Stainless steel easy-to-clean cabinet inhibits pathogen growth.
  • All models have 3 Speed / Quad Directional airflow
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap
  • Self-Diagnostics that include LCD visual display alarm readout for system fault conditions
  • Runs on a standard 115-Volt/15 Amp circuit
  • UVC light interlock switches that turn the UVC light off for access door openings
  • Washable pre-filter
  • Optional carbon filter for odor removal
  • Optional ceiling kit with stainless steel flange for creating a negative pressure
  • Heavy-duty locking casters
  • ETL and CETL listed to UL and CSA standards
  • The following table matches the CDC recommended model for the optimum 6 air change outs within a space with 9-ft. ceilings:
  • KBP600 – 600 CFM 700 sq. ft.
  • KBP1000 – 1000 CFM 1000 sq. ft.
  • KBP1800 – 1800 CFM 2000 sq. ft.
  • All Kwikool Products are Manufactured in Texas, U.S.A.
  • LCD alarm for timed filter and UVC light replacement
