KIB3021-2

LIST PRICE $7,195.00

29,500 nominal BTUH full featured Iceberg Portable

General Details
The Model KIB3021-2 (nominal 2.5-ton or 29,500 BTU) is the smallest unit possible in size and capacity in The Iceberg Series, KwiKool’s Flagship Line of portables for both primary and backup air conditioning. With its full-featured design, high sensible cooling, and balanced air system, the KIB3021-2 is the perfect solution for cooling small server and IDF rooms. The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.

All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency. The KIB3021-2 runs on a standard 230-volt/20-amp circuit with an automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use. Manufactured in the United States of America.

made-in-usa-badge

Cooling Capacity (BTUH)
29,500 btuh (2.5-Ton)
Power Supply
230V- 1Ø   20 Amp Circuit
Dimensions (WxDxH)
20.325x41x43.5
Specifications
COOLING CAPACITY
BTU/hr @ 95F at 60% RH29,500 (2.5-Ton)
COMPRESSOR DATA
Compressor TypeHermetic Rotary
Operating Temperatures60-110 F 50%RH
Refrigerant407C
FAN DATA
Evaporator
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)850/3 Speed
Supply Air DeviceAdjustable Vent
Supply Air Chute Kit (optional)2 - 6" Dia. x 18" Length
Condenser
I/O Integral Condenser Balanced Air Flow
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)1400
Condenser Duct Specs (optional)2 - 14" Dia. x 8' Length
Condenser Duct Max. Length 25'
ELECTRICAL DATA
Power Supply (Volts) 208/230 Single Phase
Current Consumption (Amps) 18.37 / 16.7
Power Consumption kW) 3.17
Maximum Circuit Breaker (Amps) 30
Recommended Breaker Size20
Minimum Circuit Ampacity(Amps) 22.675
Min./Max. Voltage 195-225/210-250
Power Cord Gauge/Length 12/6'
Plug Configuration NEMA 6-20
DIMENSIONAL DATA
Width x Depth x Height (Inches) 20.325" x 41" x 43.5"
Weight (Lbs.) 305
Shipping Weight (Lbs.) 355
Ceiling Kit Weight (Lbs.) 47
Shipping Weight w/ Ceiling Kit 402
SAFETY DEVICE DATA
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze Protection Hot Gas Bypass
High Pressure Switch Manual
Low Pressure Switch Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Type Microprocessor/Digital
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes

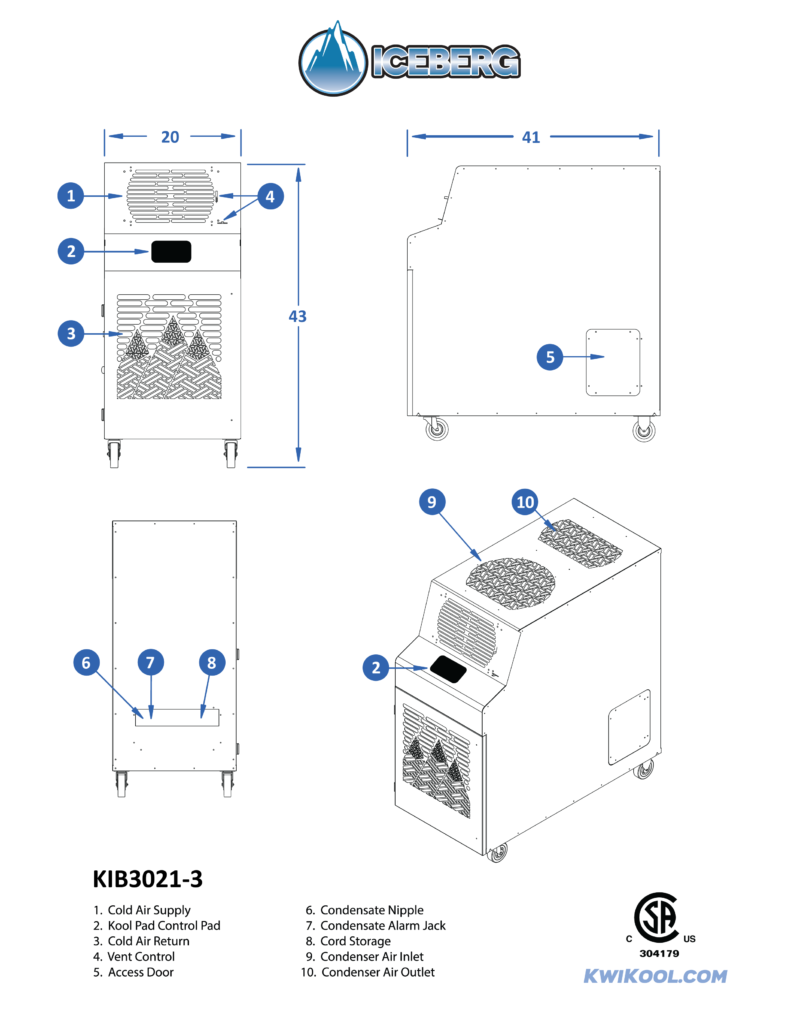

Detail Drawings
KIB3021DD
Features
  • MADE IN USA
  • 29,500 BTU/H – 2.5 Ton capacity air-cooled
  • Compact yet Powerful
  • Wide Operating range of 60ºF-110ºF
  • ETL and CETL listed to UL and CSA standards
  • Includes KwiKool’s Exclusive I/O Integral Condenser where both inlet and outlets are ductable, without costly and bulky add-on kits
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap
  • Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
  • Input/Output Alarm Contacts for connection to building systems
  • Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility.
  • Condensate overflow protection
  • Three fan speeds
  • Auto speed- automatically sets fan speed based on heat load demand (not available on single speed models)
  • Thermostatic Expansion Valve
  • Heavy duty compressor with automatic restart and short cycle protection
  • Motors and compressors have overload protection
  • High-pressure safety with manual reset
  • Low-pressure safety with automatic reset
  • Automatic freeze protection using hot gas bypass and fan cycling.
  • Low ambient controls
  • Heavy-duty locking casters
  • Rifle tube coils for efficient heat transfer
  • Fully insulated, heavy duty galvanized steel cabinet with KwiKool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation
  • Sight glass with moisture indicator
  • Filter dryer for Moisture protection
  • Easy access Service Door
  • Shraeder service ports
