LIST PRICE $20,595.00

60,000 nominal btuh Indoor/Outdoor High Static Portable

General Details
The Model KPO5-23 (nominal 5-ton or 60,000 BTU) is the most versatile unit in size and capacity in  The KPO Series, KwiKool’s Indoor/Outdoor Line of portables. The KPO5-23 has an extremely small footprint that is ideal for difficult applications that require moving cold air to a hard to reach heat load, such as a sealed interior room. The unit can be placed outdoors with duct running into a building space or it can be placed inside a building and ducted into an interior space. The KPO Series offers advanced airflow capabilities, up to 50 feet cold air return and supply and up to 65 feet of hot air exhaust ducting. All KPO models are 32 inches wide and will fit through a standard 36-inch door.

The KPO5-23 runs on a 230-volt/40-amp 3-phase circuit, which must be hard-wired by a qualified electrician. The condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that will operate at temperatures below freezing. The heavy-duty base has removable wheels and fork lift skid access for easy movement, setup, and transport. All KPO models come with a high functional phase monitor for electrical protection from unacceptable power, which damages electrical components. The unit also comes with an internal high lift condensate pump.

Ask about the Optional Heating Capabilities!


Cooling Capacity (BTUH)
60,000 btuh (5-Ton)
Power Supply
230V- 3Ø   40 Amp Circuit
Dimensions (WxDxH)
48x32x49 without 6″ wheels
BTU/hr @ 95F at 60% RH60,000 (5-Ton)
Operating TemperaturesEvaporator
65-110 F 50%RH

30-110 F 50%RH
Heat Strips/BTU12kW/41,600
Compressor TypeHermetic Recip.
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)2,400
Supply and Return Air Device1-12" flanges for supply duct and 1-12" flange for return duct
Maximum Duct length500' each for supply and return.
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)3500
Condenser Exhaust flange12"
Condenser Duct Max. Length65'
Condenser fan speed controlVariable Frequency Drive
Power Supply (Volts) 208/230 Three Phase
Current Consumption (Amps) 27.6 / 25.1
Power Consumption (kW) 9
Maximum Circuit Breaker (Amps) 40
Recommended Breaker Size50
Minimum Circuit Ampacity(Amps) 31.5
Min./Max. Voltage 195-225/210-250
Power Cord Gauge/Length 8 AWG/10'
Plug Configuration Hard Wired
Power Quality ControlInternal Phase and Power Monitor
Skid12 Gauge G90 Galvanized Steel with Epoxy Powdercoat Finish
Cabinet16 Gauge G90 Galvanized Steel with Epoxy Powdercoat
Casters6" Heavy Duty Swivel and Locking
Width x Depth x Height (Inches) 48" x 32" x 49" with 6" Casters
Weight (Lbs.) 670
Shipping Weight (Lbs.) 735
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze Protection Hot Gas Bypass with variable fan speed control
High Pressure Switch Manual
Low Pressure Switch Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Type Digital
Condensate Pump Overflow Yes
Internal Condensate Pump (high lift)Yes

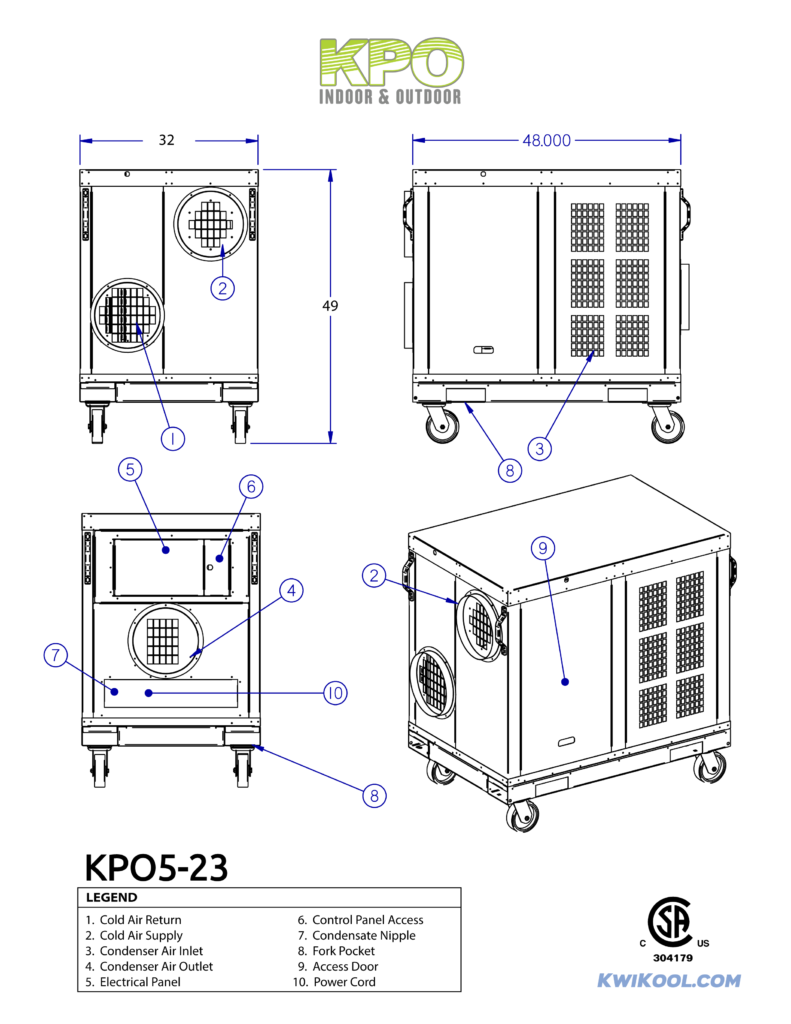

Detail Drawings


  • 60,000 btuh capacities
  • Compact yet Super Powerful
  • HD 16 gauge insulated G90 galvanized and epoxy powder coated cabinet mounted to a 12 gauge Skid for optimum durability, efficiency, low maintenance and quiet operation
  • HD Swivel and Locking Casters
  • Narrow compact size allows the KPO to go through a standard doorway
  • High Static Hyperdrive evaporator fans capable of running 100 foot of duct
  • Wide Operating range of 60ºF-110ºF
  • Low ambient condensing temperature controls utilizing Variable frequency drive technologies
  • ETL and CETL listed to UL and CSA standards
  • Multi-function Digital control with a large, easy-to-read LCD display
  • Internal high lift condensate pumps for total condensate flexibility
  • Condensate overflow protection
  • Thermostatic Expansion Valve
  • Heavy duty compressor with automatic restart and short cycle protection
  • Motors and compressors have overload protection
  • High-pressure safety with manual reset
  • Low-pressure safety with automatic reset
  • Automatic freeze protection using hot gas bypass and fan cycling
  • Rifle tube coils for efficient heat transfer
  • Sight glass with moisture indicator
  • Filter dryer for Moisture protection
  • Easy access Service Doors
  • Shraeder service ports
