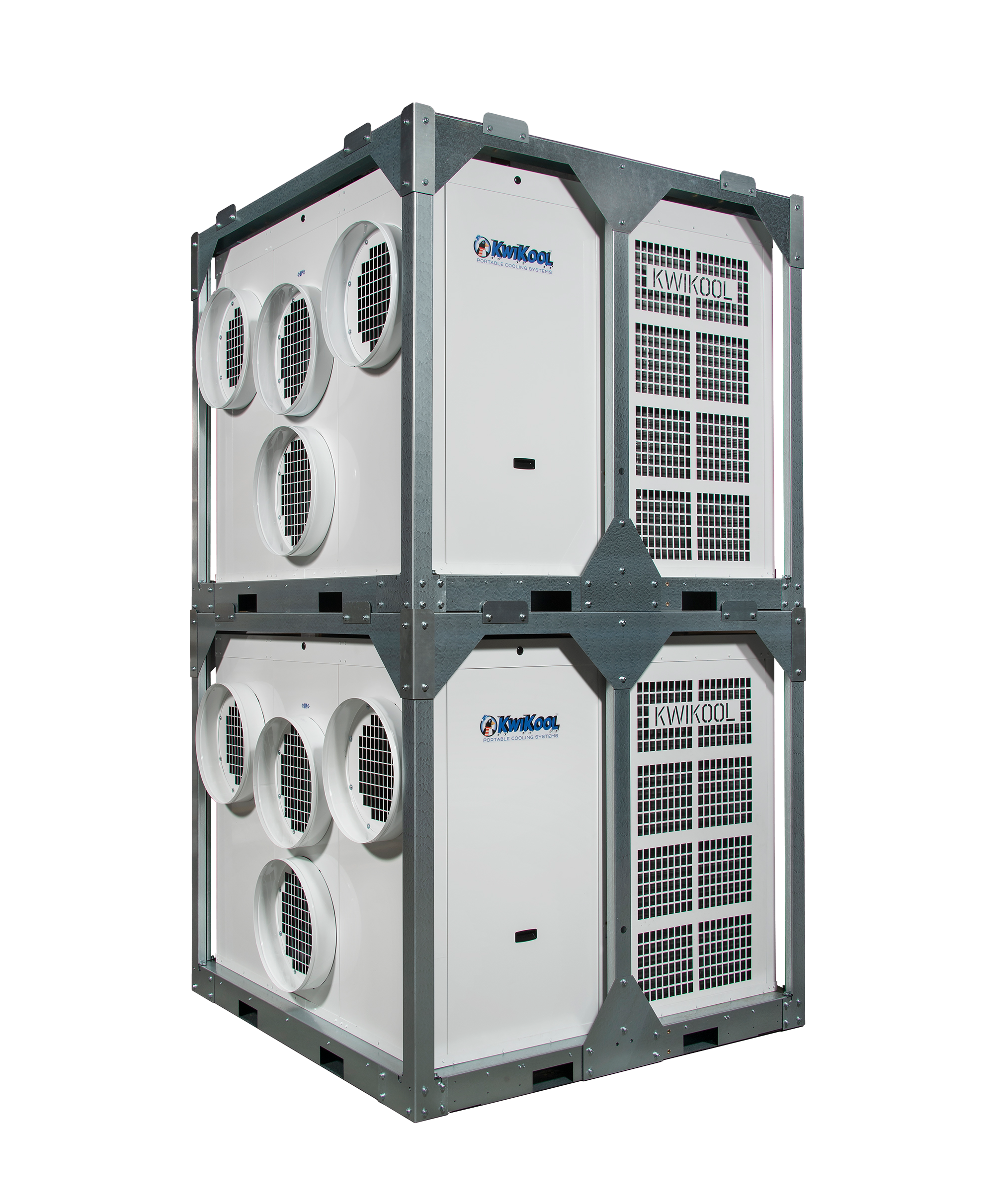

KPO25-43
General Details
The Model KPO25-43 (25-ton or 270,000 Btu) is the most versatile unit in size and capabilities compared to other portables with similar capacity. The KPO25-43 has an extremely small footprint that is ideal for difficult applications with limited available space for outside equipment. The KPO25-43 model is 66″ wide, 66″ long, and 60″ tall. The heavy-duty 12 gauge steel base offers fork lift skid access for easy movement, setup, and transport. The unit is placed outdoors with a duct running into a building space, using high static blowers to reach an isolated heat load, such as a sealed interior room. This KPO model offers advanced airflow capabilities, up to 75 feet of 20″ cold air supply and return ducts, which eliminates the need for the addition of a booster blower.
The KPO25-43 runs on a 460-volt/80-amp 3-phase circuit with built-in Cam Lock Connections for easy electrical hook up. In order to provide the unit with electrical protection, the KPO25-43 has a phase monitor. The unit will automatically shut down if the voltage or phases are improper, which could damage the unit’s electrical components. In addition, the condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that allows the unit to operate at temperatures below freezing. The unit also comes with an internal high lift condensate pump to adequately remove condensation.
And, Kwikool products are proudly MADE IN AMERICA.
Cooling Capacity (BTUH)
270,000 btuh (25-Ton)
Power Supply
460V- 3Ø 80 Amp Circuit
Dimensions (WxDxH)
66 x 66 x 60.4 Skid Mounted
Specifications
COOLING CAPACITY | ||
BTU/hr @ 95 F at 60% RH | 270,000 (25-Ton) | |
Operating Temperatures | 30-110 F 50% RH | |
HEATING (OPTIONAL) | ||
Heat Strips/BTU | 48kW/166,600 | |
COMPRESSOR DATA | ||
Compressor Type | Dual Scroll | |
Refrigerant | 407C | |
FAN DATA | ||
Evaporator | Fan Type (Centrifugal) | Direct Drive |
Air Flow (CFM) | 9,500 | |
Supply and Return Air Device | 2-20" flanges for supply duct and 2-20" flange for return duct | |
Maximum Duct Length | 60' each for supply and return | |
Condenser | Fan Type (Centrifugal) | Belt Drive |
Air Flow (CFM) | 14,000 | |
Condenser Exhaust Flange | 20" | |
Condenser Duct Max. Length | 100' | |
Condenser Fan Speed Speed Control | Variable Frequency Drive | |
ELECTRICAL DATA | ||
Power Supply (Volts) | 460 Three Phase | |
Current Consumption (Amps) | 59.4 | |
Power Consumption (kW) | 42.6 | |
Maximum Circuit Breaker (Amps) | 100 | |
Recommended Breaker Size | 80 | |
Minimum Circuit Ampacity (Amps) | 71.15 | |
Min./Max. Voltage | 420-500 | |
Power Connection | Color Coded Cam Locks (2AWG) | |
Power Quality Control | Internal Phase and Power Monitor | |
CONSTRUCTION | ||
Skid | 12 Gauge G90 Galvanized Steel With Epoxy Powder-coat | |
Cabinet | 16 Gauge G90 Galvanized Steel With Epoxy Powder-coat | |
DIMENSIONAL DATA | ||
Width x Depth x Height (Inches) | 66" x 66" x 60.4" | |
Weight (Lbs.) | 2,030 | |
Shipping Weight (Lbs.) | 2,150 | |
SAFETY DEVICE DATA | ||
Compressor Overload | Internal | |
Fan Motor Overload | Automatic Internal | |
Evaporator Freeze Protection | Hot Gas Bypass With Variable Fan Speed Control | |
High Pressure Switch | Manual | |
Low Pressure Switch | Automatic | |
Compressor Short Cycle | Yes | |
Automatic Restart | Yes | |
Thermostat Type | Digital | |
Condensate Pump Overflow | Yes | |
Internal Condensate Pump (high lift) | Yes |
