KPAC1811-3
The KPAC1811-3 has an extremely small foot print that is ideal for spot cooling people or equipment in a high ambient environment. The KPAC Series offers a quick cooling solution with its “plug and play” technology that tops the competition with its small size, strong air flow, and easy installation. The KPAC Series achieves a 20 degree F. temperature differential across its coil. This means that 95 degree F. input air will produce 75 degree F. output air. For spot cooling applications at a work station the unit will effectively cool a person or equipment within 5 to 7 feet of the unit. The KPAC Series out performs and out lasts other portables, all at a price that is comparable to other products.
The KPAC1811-3 runs on a standard 115-volt/20-amp circuit with automatic restart after a power failure. The unit comes with a 2.5-gallon self-contained condensate tank with float activated unit cut off, that is manually emptied. Installation takes less than ten minutes for easy set up, using the single duct ceiling kit.

| COOLING CAPACITY | ||
| BTU/hr @ 95F at 60% RH | 16,800 (1.5-Ton) | |
| COMPRESSOR DATA | ||
| Compressor Type | Hermetic Rotary | |
| Operating Temperatures | 70-105 F 50%RH | |
| Refrigerant | R 454 B | |
| FAN DATA | ||
| Evaporator | ||
| Fan Type (Centrifugal) | Direct Drive | |
| Air Flow (CFM) | 625/1 Speed | |
| Supply Air Device | 2 - 5" Dia. x 16" Air Chute | |
| Supply Air Duct max. length | 25' | |
| Condenser | ||
| Fan Type (Centrifugal) | Direct Drive | |
| Air Flow (CFM) | 825 | |
| Condenser Duct Specs (optional) | 1 - 12" Dia. x 8' Length | |
| Condenser Duct Max. Length | 25' | |
| ELECTRICAL DATA | ||
| Power Supply (Volts) | 115/Single Phase | |
| Current Consumption (Amps) | 15.6 | |
| Power Consumption (kW) | 1.61 | |
| Maximum Circuit Breaker (Amps) | 20 | |
| Recommended Breaker Size | 20 | |
| Minimum Circuit Ampacity(Amps) | 18.5 | |
| Min./Max. Voltage | 105-125 | |
| Power Cord Gauge/Length | 12/6' | |
| Plug Configuration | NEMA 5-20 | |

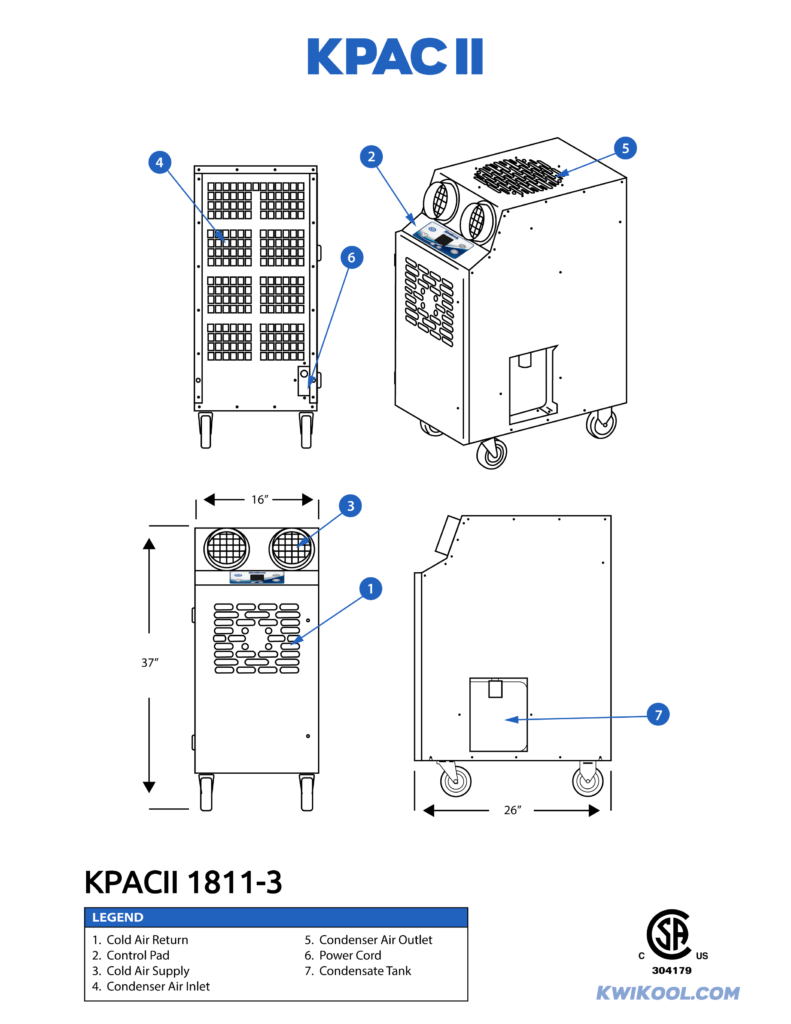

| DIMENSIONAL DATA | ||
| Width x Depth x Height (Inches) | 16" x 26" x 37" | |
| Weight (Lbs.) | 157 | |
| Shipping Weight (Lbs.) | 207 | |
| Ceiling Kit Weight (Lbs.) | 22 | |
| Shipping Weight w/ Ceiling Kit | 229 | |
| SAFETY DEVICE DATA | ||
| Compressor Overload | External | |
| Fan Motor Overload | Automatic Internal | |
| Evaporator Freeze Protection | Optional Freeze Stat | |
| High Pressure Switch | Manual | |
| Compressor Short Cycle | Yes | |
| Automatic Restart | Yes | |
| Thermostat Type | Microprocessor/Digital | |
| Condensate Pump Overflow | Optional | |
| Condensate Tank Overflow | Yes |

- MADE IN USA
- 16,800 BTU/H – 1.5 Ton capacity air cooled
- Compact yet Powerful
- Runs on 115V 20 amp circuit
- Wide Operating range of 70ºF-105ºF
- ETL and CETL listed to UL and CSA standards
- Single duct system for easy installation.
- Multi-function microprocessor control with a large, easy-to-read LCD display
- Easy-touch control pads make changing system settings a snap.
- 3.5 gallon self-contained condensate reservoir tank for easy removal and emptying.
- Condensate overflow protection with audible alarm
- Capillary tube construction for simplicity.
- Heavy duty compressor with automatic restart and short cycle protection.
- Motors and compressors have overload protection.
- High-pressure safety with manual reset.
- Automatic freeze protection using microprocessor freeze stat.
- Heavy-duty locking casters.
- Rifle tube coils for efficient heat transfer.
- Fully insulated, heavy duty galvanized steel cabinet with Kwikool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation.
- Filter dryer for Moisture protection
- Easy access Service Door
- Shraeder service ports.
