KBIO1411

LIST PRICE $5,495.00

13,800 BTUH unique specialized portable with air purification cooling

General Details
Medical Grade Portable Air conditioning
KBIO1411 (nominal 1.1-ton or 13,800 BTU) is the newest KwiKool Portable Cooling System in The BioKool Series. With its full-featured design, that combines air purification with 13,800 BTUs of air conditioning. The BioKool Series exclusive 4 point “air therapy” process cools, cleans, disinfects, and retards mold & microbe growth. This means that the KBIO1411 model will clean 99.999% of all particulates greater than .03 microns in size and reduces microorganisms by irradiating the evaporator coil, airstream, and the internal surfaces of the evaporator chamber, all while controlling the temperature. The BioKool Series is quick and easy with its “plug and play” technology and has a patent-pending. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands of ordinary spot coolers), the BioKool Series is in a class by itself and will give you the clean cool space that you need.

Balanced Air Pressure for Maximum Efficiency
BioKool comes standard with Kwikool’s exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency. A single duct portable system creates a negative pressure in the conditioned space which draws in unprocessed air from outside the space. Balanced Air pressure is a must to create a clean environment and to prevent cross-contamination. The KBIO1411 runs on a standard 115-volt/20-amp circuit and is equipped with an automatic restart to continue cooling after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short-term use.

Unmatched Innovation
Introducing BioKool™ the latest addition to the exclusive Kwikool product line. With more than thirty units developed over the course of two decades, Kwikool is leading the industry in portable cooling systems with more innovations in spot cooling than any other brand. Today, they have achieved what others have not been able to do; provide a uniquely crafted solution provides everything medical administrators, clean room facilities, and laboratories have been searching for in a spot cooling system.

Emergency Temperature Control
BioKool™ IS the only solution of its caliber for emergency temperature control. As of today, there is no second runner-up. BioKool™ simultaneously cleans and disinfect while it cools. BioKool’s exclusive four-point “air therapy” process cools, cleans, disinfects, and retards mold and microbe growth thanks to the exclusive processes and materials.

In addition, BioKool™ contains a high static blower which facilitates precision airflow through a hermetically sealed four-inch-thick HEPA filter controlling particulates down to .03 microns

Air Quality Systems You Can Trust
As an added layer of protection, Internal UVC lights have been fitted inside each air chamber irradiating the cold air supply as well as the evaporator coil and the internal surfaces of the evaporator chamber. With a UVC light in place, microorganisms and pathogens are on the run.

The inside of the Biokool’s evaporator chamber has Kwikool’s exclusive smooth,  non-porous, and UV resistant surface evaporator insulation. This smooth surface makes it more difficult for molds or other microbes from attaching to the insulation.  It also repels moisture which aids in preventing microbe growth.

This state of the art BioKool™ unit provides maximum protection from 99.9% of contaminants found in inside and outside air. Our patent-pending design and dual condenser ducting maintain balanced air pressure within the room, keeping it cool, as long as you need it.

BioKool’s exclusive 4 points “air therapy” process: cools | cleans | disinfects | retards mold & microbe growth

made-in-usa-badge

Cooling Capacity (BTUH)
13,800 btuh (1-Ton)
Power Supply
115V  20 Amp Circuit
Dimensions (WxDxH)
16x43x38
Specifications
COOLING CAPACITY
BTU/hr @ 95F at 60% RH13,800 (1-Ton)
AIR PURIFICATION
ULPA/HEPA Filter99.999% @ > .12 Microns
UVC Light Wave LengthUVC 17 Watts / Max 85 Watts
COMPRESSOR DATA
Compressor TypeHermetic Rotary
Operating Temperatures65-105F 50%RH
Non-CFC Refrigerant410A
FAN DATA
Evaporator
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)450 / Single Speed
Supply Air DataAdjustable Vent
Supply Air Chute Data (optional)2 - 5" Dia. x 16" Length
Condenser
I/O Integral Condenser - In / OutBalanced Air Flow
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)700
Condenser Duct Data (optional)2 - 12" Dia. x 8' Length
Condenser Duct Maximum Length 25'
ELECTRICAL DATA
Power Supply (Volts) 115V / Single Phase
Current Consumption (Amps) 15.8
Power Consumption (kW) 1.55
Maximum Circuit Breaker (Amps) 20
Recommended Breaker Size20
Minimum Circuit Ampacity (Amps) 21.3
Min./Max. Voltage 105-125
Power Cord Gauge/Length in Feet12 AWG / 6'
Plug Configuration NEMA 5-20
DIMENSIONAL DATA
Width x Length x Height (Inches) 16" x 43" x 38"
Weight (lbs) 230
Shipping Weight (lbs) 265
Ceiling Kit CK-12SS Weight (lbs) 17
Shipping Weight w/ Ceiling Kit 282
Shipping Pallet Size32" x 60"
SAFETY DEVICE DATA
Compressor Overload External
Fan Motor Overload Automatic Internal
Evaporator Freeze-upHot Gas Bypass & Fan Cycling
High Pressure Switch Manual
Low Pressure Switch Auto
Compressor Short Cycle Yes
Automatic Restart Yes
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes

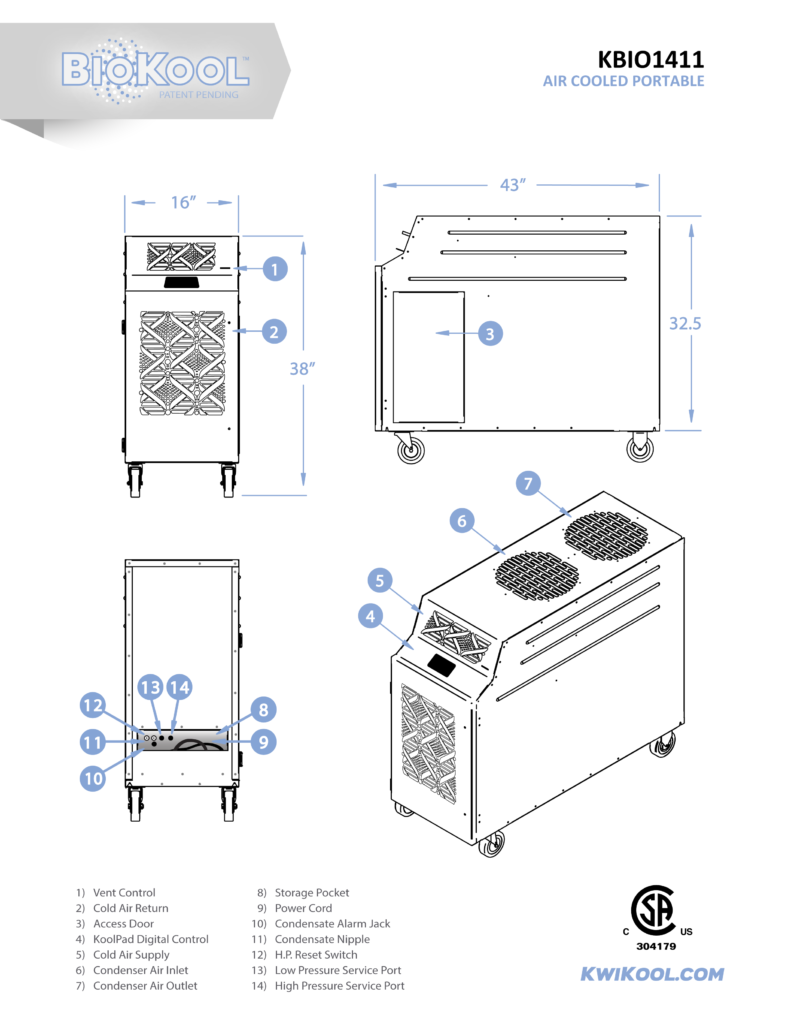

Detail Drawings
Features
  • MADE IN USA
  • 13,800 BTU/H – 1-Ton capacity air-cooled
  • Compact yet Powerful
  • Runs on 115V 20 amp circuit
  • Wide Operating range of 65ºF-105ºF
  • Safe Hospital Grade Supplemental Air Conditioning
  • ULPA Filter – a high-efficiency UPLA filter which filters 99.999% of particulates greater than .12 microns in size
  • Internal UVC light reduces microorganisms by irradiating the evaporator coil, airstream and the internal surfaces of the evaporator chamber
  • UVC light interlock switches that turn the UVC light off for access door openings
  • Dual ducting provides balanced air pressure to prevent the entry of outside contamination
  • ETL and CETL listed to UL and CSA standards
  • Includes KwiKool’s Exclusive I/O Integral Condenser where both inlet and outlets are deductible, without costly and bulky add-on kits
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap
  • Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
  • Input/Output Alarm Contacts for connection to building systems
  • Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility.
  • Condensate overflow protection
  • Thermostatic Expansion Valve
  • Heavy-duty compressor with automatic restart and short cycle protection
  • Motors and compressors have overload protection
  • High-pressure safety with manual reset
  • Low-pressure safety with automatic reset
  • Automatic freeze protection using hot gas bypass and fan cycling
  • Low ambient controls
  • Heavy-duty locking casters
  • Rifle tube coils for efficient heat transfer
  • Fully insulated, heavy-duty galvanized steel cabinet with KwiKool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance, and quiet operation
  • Sight glass with moisture indicator
  • Filter dryer for Moisture protection
  • Easy access Service Door
  • Shraeder service ports
